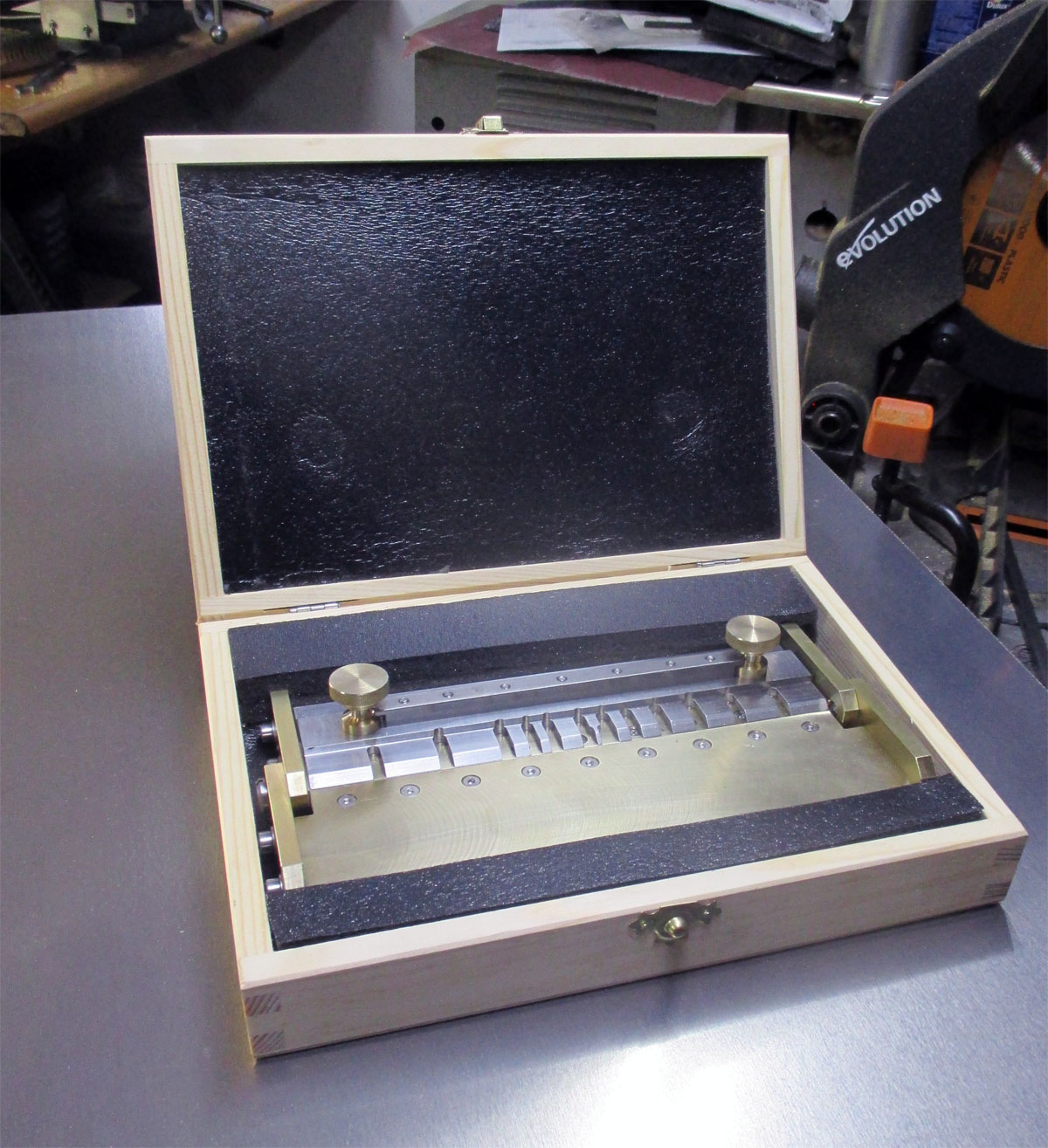

Bending machine Scorpion

SCORPION bending tool designed to work with photo etched parts and not only. It is high quality tool, excellent for every modeller. It is used by hobbyist building tanks, trains,ships etc.
Adjustable steel bendig blade allows maximal benging lenght of 180 mm. In case of metal sheets with thickness between 0.4 and 0.5mm maximal bendig lenght is 50mm.

Maximal Bendig width – 180 mm
Minimal Bendig width 1,5 mm
Maximal Bendig angle – 135 degrees
Gap adjustment between table and beding edge – 0 to 2 mm
Overall tool Sice – width 200 mm, height 16mm, depth 100mm
Tool weight 1400g
